IEC 60502-1 Cables

600/1000V, XLPE Insulated Cables according to IEC 60502-1 (armoured)

Application:

These IEC 60502-1 cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Construction:

ConductorsCopper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

InsulationXLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code	Colour Code (1) :
	1 Core :		Red or Black
	2 Cores	:	Red, Black
	3 Cores	:	Red, Yellow, Blue
	4 Cores	:	Red, Yellow, Blue, Black
	5 Cores	:	Red, Yellow, Blue, Black, Green
	Above 5 Cores :		Black Cores with White numerals
	Colour Code (2) :
	1 Core :		Brown or Blue
	2 Cores	:	Brown or Blue
	3 Cores	:	Brown, Black, Grey
	4 Cores	:	Blue, Brown, Black, Grey
	5 Cores	:	Green/Yellow, Blue, Brown, Black, Grey
	Above 5 Cores :		Black Cores with White numerals

Assembly /Inner Sheath

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour

Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

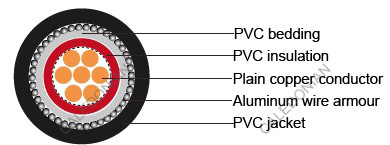

Single core( aluminum wire armoured)

Nominal Area	ApproxConductor Diameter	Nominal Insulation thickness	Nominal beddingthickness	Nominal Alum Wire dia.	Nominal Sheath thickness	Approx.Overall Diameter	Approx.Weight
mm²	mm	mm	mm	mm	mm	mm	Kg/Km
1x50	8.8	1	1	1.25	1.8	19.5	730
1x70	10.6	1.1	1	1.25	1.8	21.5	970
1x95	12.4	1.1	1	1.6	1.8	24	1220
1x120	14	1.2	1	1.6	1.8	25.5	1520
1x150	15.5	1.4	1	1.6	1.8	27.5	1920
1x185	17.4	1.6	1	1.6	1.8	30	2320
1x240	20.3	1.7	1	1.6	1.9	33	2920
1x300	22.7	1.8	1	1.6	1.9	35	3650
1x400	25.4	2	1.2	2	2.1	40.5	4670
1x500	28.8	2.2	1.2	2	2.2	44.5	5870
1x630	30.4	2.4	1.2	2	2.3	49	7360
1x800		2.6	1.4	2.5	2.5	55.5	9360
1x1000		2.8	1.4	2.5	2.7	61	11350

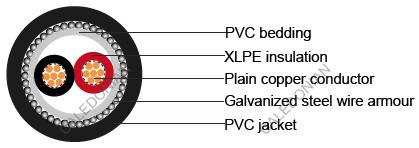

Two cores(Galvanized steel wire armoured)

Nominal Area	ApproxConductor Diameter	Nominal Insulation thickness	Nominal beddingthickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Approx.Overall Diameter	Approx.Weight
mm²	mm	mm	mm	mm	mm	mm	Kg/Km
2x1.5	1.6	0.7	1	0.9	1.8	13.5	360
2x2.5	2	0.7	1	0.9	1.8	14.5	405
2x4	2.6	0.7	1	0.9	1.8	15.8	470
2x6	3.1	0.7	1	0.9	1.8	17	505
2x10	4	0.7	1	1.25	1.8	19.3	900
2x16	5	0.7	1	1.25	1.8	21.2	950
2x25	6.3	0.9	1	1.6	1.8	24	1205
2x35	7.4	0.9	1	1.6	1.8	24.8	1800
2x50	8.8	1	1	1.6	1.8	26	1850
2x70	10.6	1.1	1	2	2	29	2335
2x95	12.4	1.1	1.2	2	2.1	33.2	3165
2x120	14	1.2	1.2	2	2.3	36.1	3750
2x150	15.5	1.4	1.2	2.5	2.3	39.3	4410
2x185	17.4	1.6	1.3	2.5	2.5	44.8	5710
2x240	20.3	1.7	1.4	2.5	2.7	53.5	7150
2x300	22.5	1.8	1.5	2.5	2.9	58	8565
2x400	25.4	2	1.6	2.5	3.1	63	10695

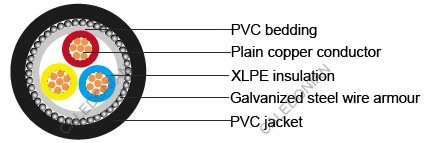

Three cores(Galvanized steel wire armoured)

Nominal Area	ApproxConductor Diameter	Nominal Insulation thickness	Nominal beddingthickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Approx.Overall Diameter	Approx.Weight
mm²	mm	mm	mm	mm	mm	mm	Kg/Km
3x1.5	1.6	0.7	1.2	0.9	1.8	15	380
3x2.5	2	0.7	1.2	0.9	1.8	15.5	400
3x4	2.6	0.7	1.2	0.9	1.8	16.5	460
3x6	3.1	0.7	1.2	0.9	1.8	18	540
3x10	4	0.7	1.2	0.9	1.8	19.5	750
3x16	5	0.7	1.2	1.25	1.8	22.5	1000
3x25	6.3	0.9	1.2	1.6	1.8	26	1510
3x35	7.4	0.9	1.2	1.6	1.8	28	1950
3x50	8.8	1	1.2	1.6	1.9	32	2350
3x70	10.6	1.1	1.2	2	2	35	3230
3x95	12.4	1.1	1.2	2	2.1	39	4050
3x120	14	1.2	1.2	2	2.3	43	5230
3x150	15.5	1.4	1.4	2.5	2.4	47	6750
3x185	17.4	1.6	1.4	2.5	2.6	52	8230
3x240	20.3	1.7	1.5	2.5	2.7	59	10510
3x300	22.5	1.8	1.6	2.5	2.9	64	13210
3x400	25.4	2	1.6	2.5	3.2	74	16100

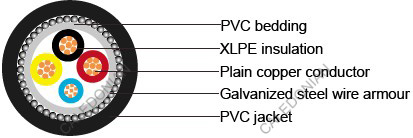

Three cores+1(Galvanized steel wire armoured)

Nominal Area	ApproxConductor Diameter		Nominal Insulation thickness		Nominal beddingthickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Approx.Overall Diameter	Approx.Weight
mm²	(3) mm	(1) mm	(3) mm	(1) mm	mm	mm	mm	mm	Kg/Km
3x 16/10	5	4	0.7	0.7	1	1.6	1.8	25.5	1550
3x 25/16	6.3	5	0.9	0.7	1	1.6	1.8	27.5	2010
3x 35/16	7.4	5	0.9	0.7	1	1.6	1.8	29	2375
3x 50/25	8.8	6.3	1	0.9	1	1.6	2	33	3100
3x 70/35	10.6	7.4	1.1	0.9	1.2	2	2.1	38	4290
3x 95/50	12.4	8.8	1.1	1	1.2	2	2.3	43.5	5540
3x120/70	14	10.6	1.2	1.1	1.2	2	2.4	49	7150
3x150/70	15.5	10.6	1.4	1.1	1.4	2.5	2.5	52	8330
3x185/95	17.4	12.4	1.6	1.1	1.4	2.5	2.7	57.2	10110
3x240/120	20.3	14	1.7	1.2	1.6	2.5	3	64	12740
3x300/150	22.7	15.5	1.8	1.4	1.6	2.5	3	69.8	15430
3x400/185	25.4	17.4	2	1.6	1.6	3.15	3.3	78.6	19990

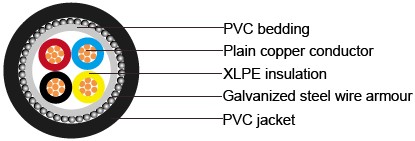

Four cores(Galvanized steel wire armoured)

Nominal Area	ApproxConductor Diameter	Nominal Insulation thickness	Nominal beddingthickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Approx.Overall Diameter	Approx.Weight
mm²	mm	mm	mm	mm	mm	mm	Kg/Km
4x1.5	1.6	0.7	1	0.9	1.8	15	415
4x2.5	2	0.7	1	0.9	1.8	17.5	490
4x4	2.6	0.7	1	0.9	1.8	19	600
4x6	3.1	0.7	1	0.9	1.8	20	730
4x10	4	0.7	1	1.25	1.8	23	970
4x16	5	0.7	1	1.6	1.8	26	1520
4x25	6.3	0.9	1	1.6	1.8	29	2010
4x35	7.4	0.9	1	1.6	1.9	31	2560
4x50	8.8	1	1	1.6	2.1	36	3350
4x70	10.6	1.1	1.2	2	2.2	40	4680
4x95	12.4	1.1	1.2	2	2.4	44	5710
4x120	14	1.2	1.4	2.5	2.5	50	7500
4x150	15.5	1.4	1.4	2.5	2.6	55	9010
4x185	17.4	1.6	1.4	2.5	2.8	61	10820
4x240	20.3	1.7	1.6	2.5	3.1	69	13630
4x300	22.7	1.8	1.6	2.5	3.2	75	16820
4x400	25.4	2	1.8	3.15	3.4	83	22230
